NAB 2016: OWC Showcases Jupiter Archive and Storage Solutions


In today’s work world, storage and archiving are the bane of our existence. Enterprise level solutions abound, but we had the chance to examine The Jupiter Callisto from Other World Computing during the recent NAB and wanted to share our findings with you. You might also like our correspondent, Suzanne LaChasse’s brief interview with Jupiter’s Chris Haeffner in the OWC booth at the recent NAB 2016.

Jupiter solutions are designed to act as both a NAS (network attached storage) and a SAN (storage area network) simultaneously, “for the most advanced level of versatility and flexibility offered in a storage solution.”

Blazing fast Ethernet speeds up to 10Gb/s and advanced data protection and optimization via Callisto’s ZFS-based storage architecture lend strength and security.

The OWC Jupiter Callisto, features 8 or 16 drive bays and up to 128TB of centralized storage. But users can connect up to three Jupiter Kore SAS expansion units to their Callisto and upgrade to 512TB. Add an external SAS switch and limitations on speed and power disappear.

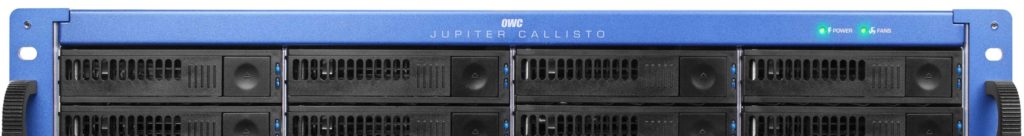

jupiter_callisto
We are flashing (no pun intended) back on our former purchase of an X-Serve-RAID that weighed 100 lbs and had the capacity of a whopping 7TB! The Jupiter is not your mother’s old-fashioned RAID.

For more information visit MacSales.com.

TECH SPECS
INCLUDES:
Jupiter 8-bay Rack
Flash drive containing Jupiter manuals, drivers, and software
Slide rails
Eight M5 pan head screws
Twelve M5 cage nuts
Four M5 enclosure securing screws
Eight drive trays with drives attached
Two power cables (North America)
Rail extensions
For mount screws not supplied, consult your rack manufacturer specs.

DETAILED SPECS
Manufacturer Part Number JCAL0835R016T
Processor Intel Xeon E5-2603 v2 Processor – 1.80GHz 4-core Memory
32GB expandable up to 256GB
Standard Mechanism 8 x 2.0TB* Toshiba MG03SCA200 SAS 6Gb/s** 7200 RPM
Drive Cache Size 512MB (8 Drives with 64MB cache each)
File Sharing Protocols Mac: AFP Windows: Support for SMB 3.0
Other/Linux/Unix: NFS
Block Level Sharing Protocols iSCSI
Primary File System ZFS
Alternate File System Support UFS2, NTFS, FAT
Interfaces
Network: Intel X540T 10GbE
Storage (built-in): LSI SAS2308 SAS 6Gb/s
Storage (expansion): LSI SAS2308 SAS 6Gb/s
Connections
Network: Up to two 10 Gigabit Ethernet (10GBASE-T) ports
IPMI: One 1 Gigabit Ethernet
Storage Expansion: Two SAS 2.0 mini-SAS (4x) connections, two USB 2.0 connections
Cable Support
Network: Cat6a and Cat7 for 10GbE, Cat5e and Cat6 for 1GbE
Front Panel Indicators
Power status, fan status
Drive Bay Indicators Power, activity
Client Requirements Any computer system equipped with an RJ-45 Ethernet port.
Dimensions
Height: 3.5 in (8.98 cm)
Width: 19 in (48.26 cm)
Depth: 23 in (58.42 cm)
Weight Empty
29.9 lbs (13.56 kg)
Rack Compatibility
Square hole mounting hardware included, for round hole rack mounting, consult your rack specifications for proper hardware. Included rails support up to 19″ (48.26cm) width and 30″ (762mm) depth
Power Supply Unit (PSU)
Type: 380W High Efficiency 1+1 redundant, hot-swappable, and load-balancing power supply
Operating Voltage: 90~264 VAC Full Range Auto-switching
Operating Environment: 32°F to 104°F (0°C to 40°C); 20 to 95% non-condensing
Non-Operating Environment: -4°F to 176°F (-20°C to 80°C); 10 to 95% non-condensing
MTBF: 223,678 hours
Supported Drives/Devices
Up to eight 3.5″ SAS or SATA drives (1.5Gb/s, 3.0Gb/s, or 6.0Gb/s)
Up to eight 2.5″ SAS or SATA drives (1.5Gb/s, 3.0Gb/s, or 6.0Gb/s) with adapter
Drives of identical capacity / model are recommended for RAID configurations

OPERATING ENVIRONMENT
Temperature
Operating: 32°F to 104°F (0°C to 40°C)
Non-Operating: -4°F to 176°F (-20°C to 80°C)
Relative Humidity
Operating: 20 to 95% non-condensing
Non-Operating: 10 to 95% non-condensing

WARRANTY
5 Year OWC Jupiter Storage Solution Limited Warranty

*1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

**OWC reserves the right to replace or upgrade to equivalent or better components.
Drive Rotation Speed

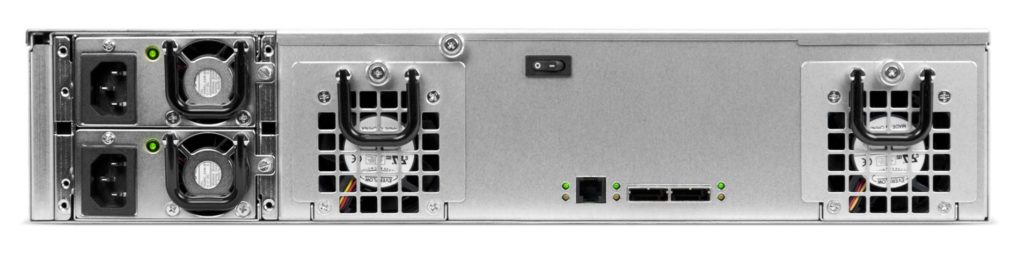

jupiter_back
